Entity Embed

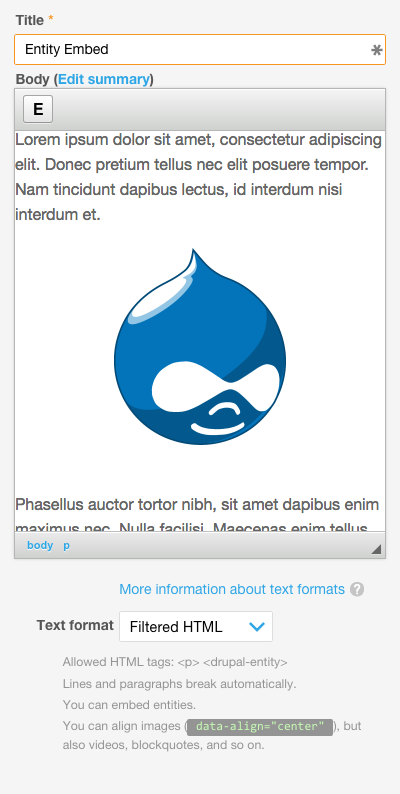

Entity Embed allows any entity to be embedded within a text area using a WYSIWYG editor.

Requirements

8.x-1.x

• Editor (included with Drupal core).
• Embed

7.x-3.x

• Editor
• Entity Reference

Installation

• Entity Embed can be installed via the standard Drupal installation process.

Configuration

• Go to the Text formats and editors configuration page: /admin/config/content/formats, and for each text format/editor combo where you want to embed entities, do the following:
  • Enable the Display embedded entities filter for the desired text formats on the Text Formats configuration page.
  • Drag and drop the 'E' button into the Active toolbar.
  • If the text format uses the Limit allowed HTML tags and correct faulty HTML filter, ensure the necessary tags and attributes were automatically added:
    appears in the Allowed HTML tags setting.
  • If you're using both the Align images and Caption images filters make sure the Align images filter is run before the Caption images filter in the Filter processing order section. (Explanation: Due to the implementation details of the two filters it is important to execute them in the right sequence in order to obtain a sensible final markup. In practice this means that the alignment filter has to be run before the caption filter, otherwise the alignment class will appear inside the
tag (instead of appearing on it) the caption filter produces.)

Notice: If you were using the module in very early pre-alpha stages you might need to add data-entity-id to the list of allowed attributes. Similarly, if you have been using the module in pre-beta stages, you need to add the data-entity-embed-settings attribute.

The 7.x releases always require the data-entity-id attribute.

Resources

• Demo video by Chandan Singh the incredible GSOC 2014 student who helped drive this module forward.

Related Modules

• URL Embed: allows URLs to be embedded within a text area using a WYSIWYG editor.
• Entity Browser: When enabled, offers a more advanced embedded entity selection workflow.
• Media: When embedding file entities, allows files to be selected using the media browser.
