World Resources Institute

WRI has been producing blog posts, presentations, data sets, charts, graphs, and other research documents of various formats and lengths for over 30 years now. At the onset of this redesign project, all of this content was distributed between the institute’s legacy Drupal 5 website, a Drupal 6 blog, and other sources. Some of the blog nodes had been duplicated onto their legacy site, so during the migration we had to be careful to only bring over one copy of the post. In addition, the legacy site included custom modules, which made the migration process challenging. For example, instead of having a file field on a node, multiple files were linked via a text area field using Markdown. This code had to be parsed in order to get the files as separate file fields in the Drupal 7 site. Our team used the Migrate module along with custom code to move the content into Drupal 7. The Entity Reference module was enabled to relate supporting content—such as blog posts, graphics, maps, and data sets—to WRi’s research publications. In order to direct users to supporting information, as well as to the main Publication, the Views module was used to display groups of content on related nodes.

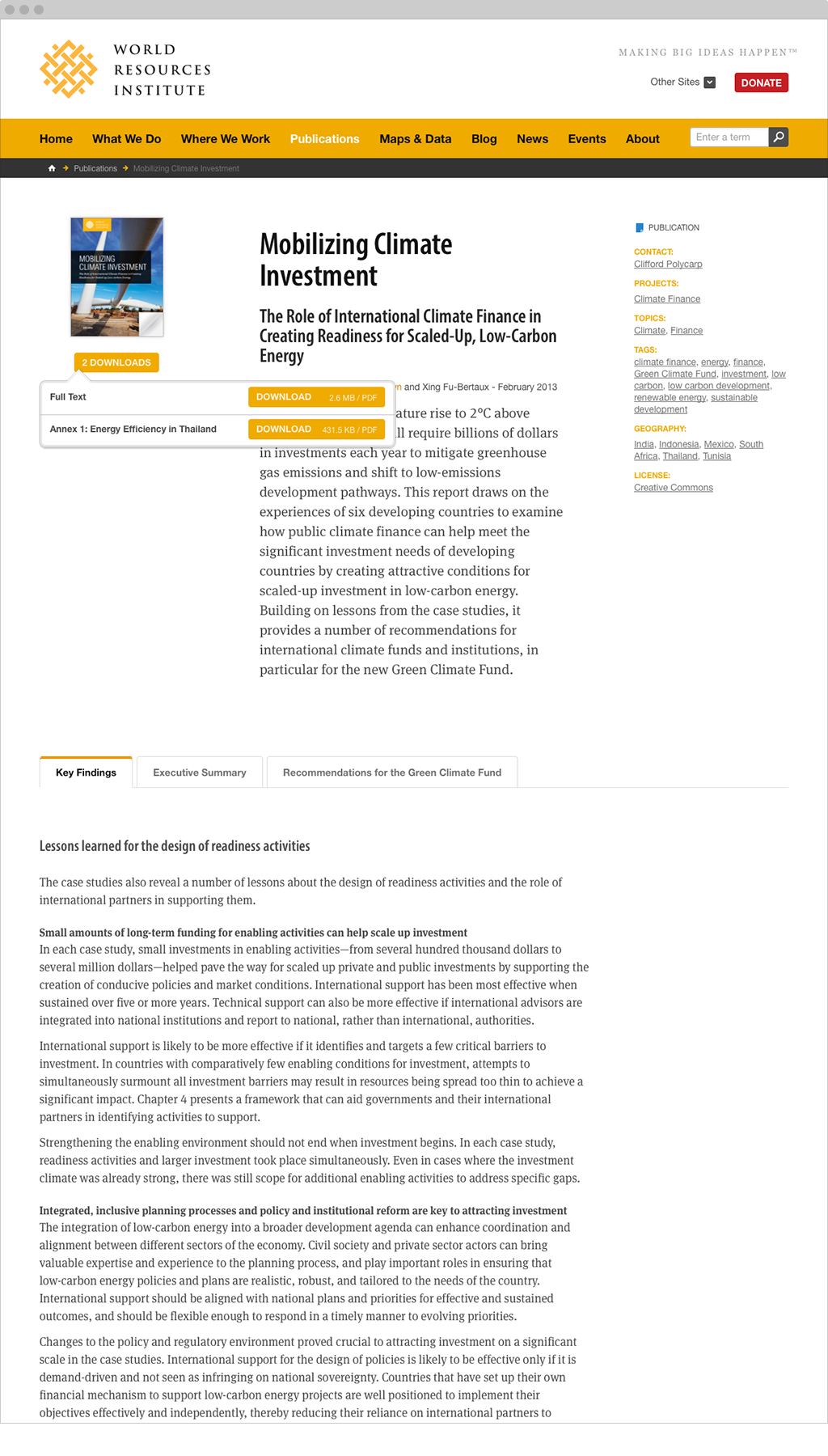

With content migrated into Drupal 7, it was time to focus on creating an effective interface for three main Content Types: Resources (which include several sub-types like charts, data visualizations and maps), Publications, and Blog Posts. Using the Views module, the development team created a directory page for each of these types with exposed filters for narrowing down the list based on geography, topics, date, and keywords. During the Information Architecture process, the team identified a common structure to be shared across these pages, each displaying a title, description, search form, search results, and filters. Leveraging the Panels module, a reusable structure was created that could be fine-tuned for each Content Type. In order to demonstrate the depth of their research, WRI wanted a method to display related resources, publications, and blog posts throughout the site. Since the number of related items varies based on the selected topic, the team created a custom Panels layout that keeps the design balanced by shifting content dynamically. With this method, the page layout adapts to the format and types of related content, as well as the size of the user’s screen.

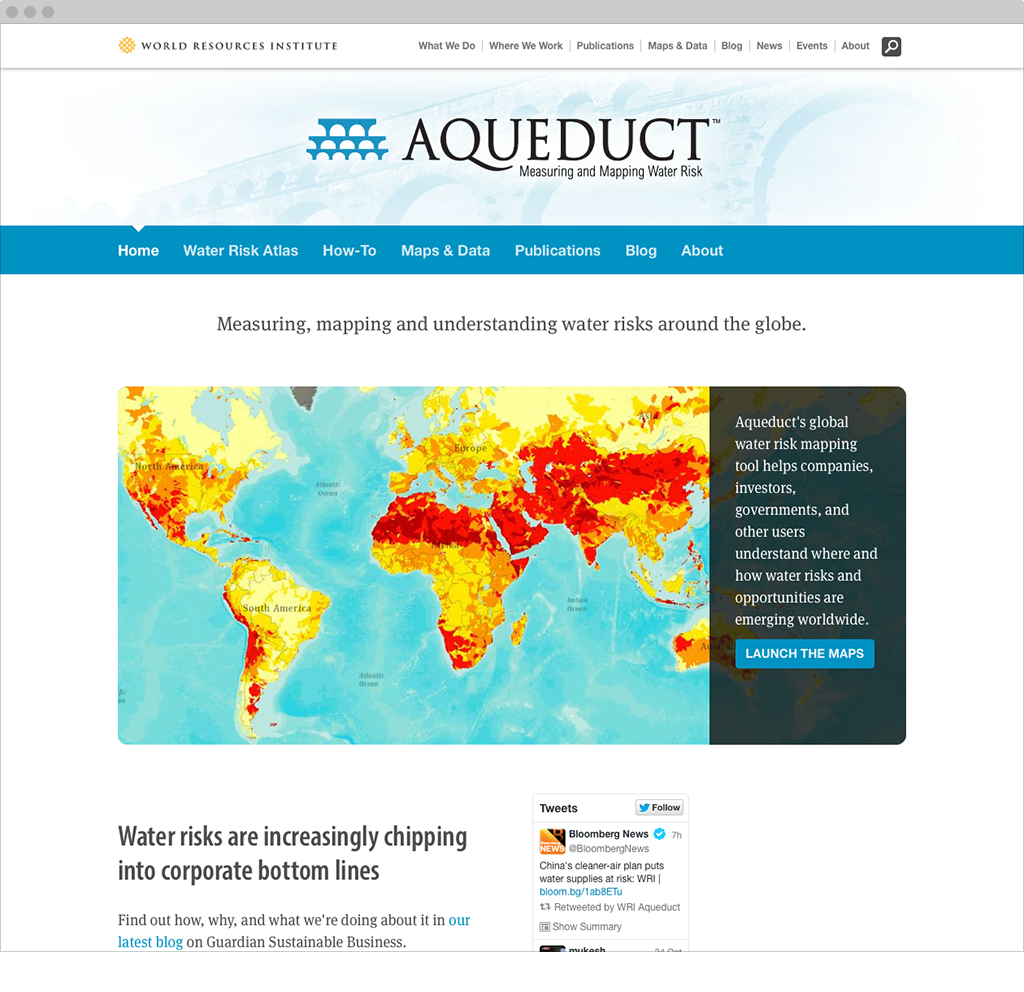

Panels also helped when creating Projects, a custom Content Type in the new system. WRI Projects are displayed differently according to WRI’s internal categorization–levels 1, 2, or 3–which in turn is derived from the funding and scope of the individual project. Level 1 Projects were listed with simple dynamic Views of related content. Level 2 Projects leverage a tabbed structure to include additional information about the project. Level 3 Projects are full-on microsites with a separate customizable theme, navigation, and CSS to adjust colors, background, and the project logo. A Panels-based architecture allowed the team to display projects with varying degrees of complexity dynamically based on the level of a given project and available associated content.

Since so much of WRI’s work is tied to publishing research documents and other resources for users, an effective search interface was particularly important. WRI’s legacy website relied on Google search, which cost significant licensing fees and didn’t allow users to refine their results. We chose Apache Solr to improve the search interface, leveraging facets for a fast, intuitive experience. Drupal’s Apache Solr module simplified configuration options for Solr, allowing the project team to easily control which facets to display and which fields to index.

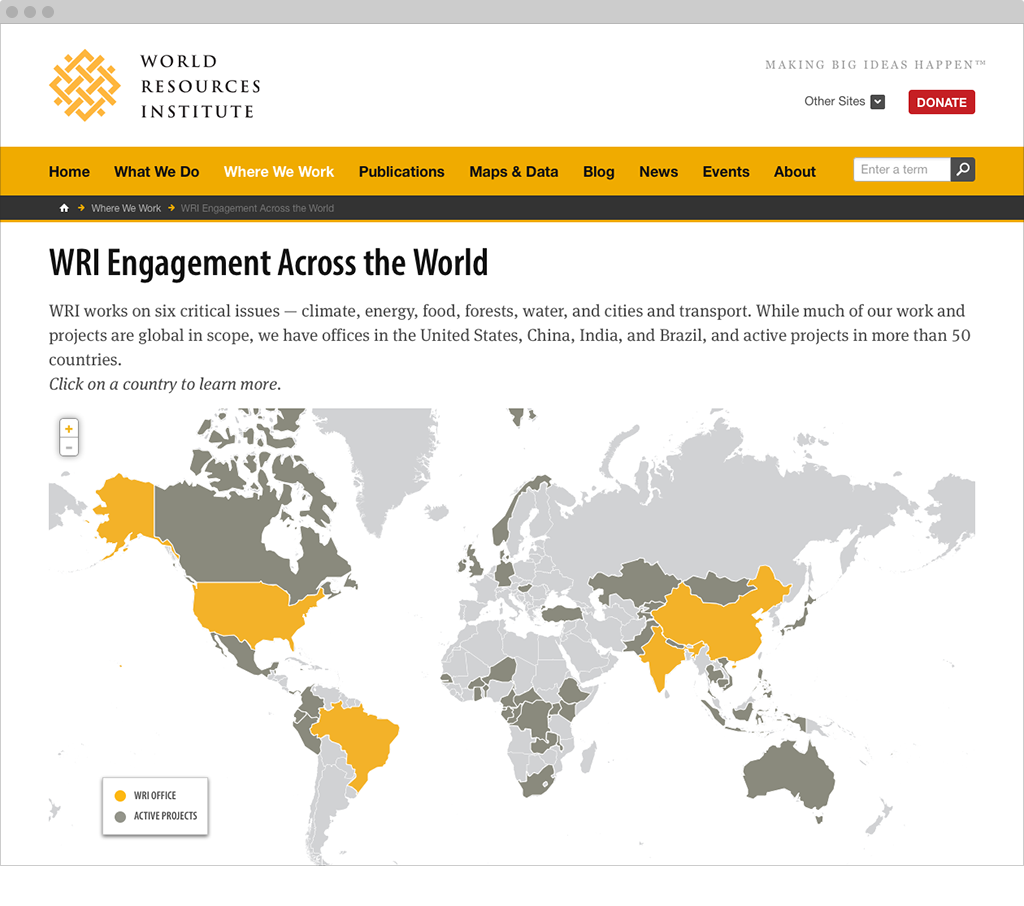

Demonstrating global impact was a key goal for the redesign and was woven into the entire experience. One aspect of this was an interactive map that highlights countries with active projects and locations for WRI offices worldwide. The map was designed with Tilemill, and hosted with Mapbox. To render the map in the browser, the team chose Leaflet—a mobile-friendly JavaScript mapping library—for its simple but powerful APIs and responsive design capabilities. Because WRI’s data was tied to countries rather than points, the team needed to encode and render geographic shapes instead of simple coordinates. To accomplish this, they used GeoJSON outlines from an open source GeoJSON repository. The number of locations where WRI works changes frequently, so the institute needed a simple way to highlight new countries. Countries were structured as taxonomy terms, each referencing GeoJSON outlines for its physical bounds on the map. As new offices or projects are added and categorized by country, they appear automatically. The result is simple and powerful, clearly representing WRI’s presence all over the world.

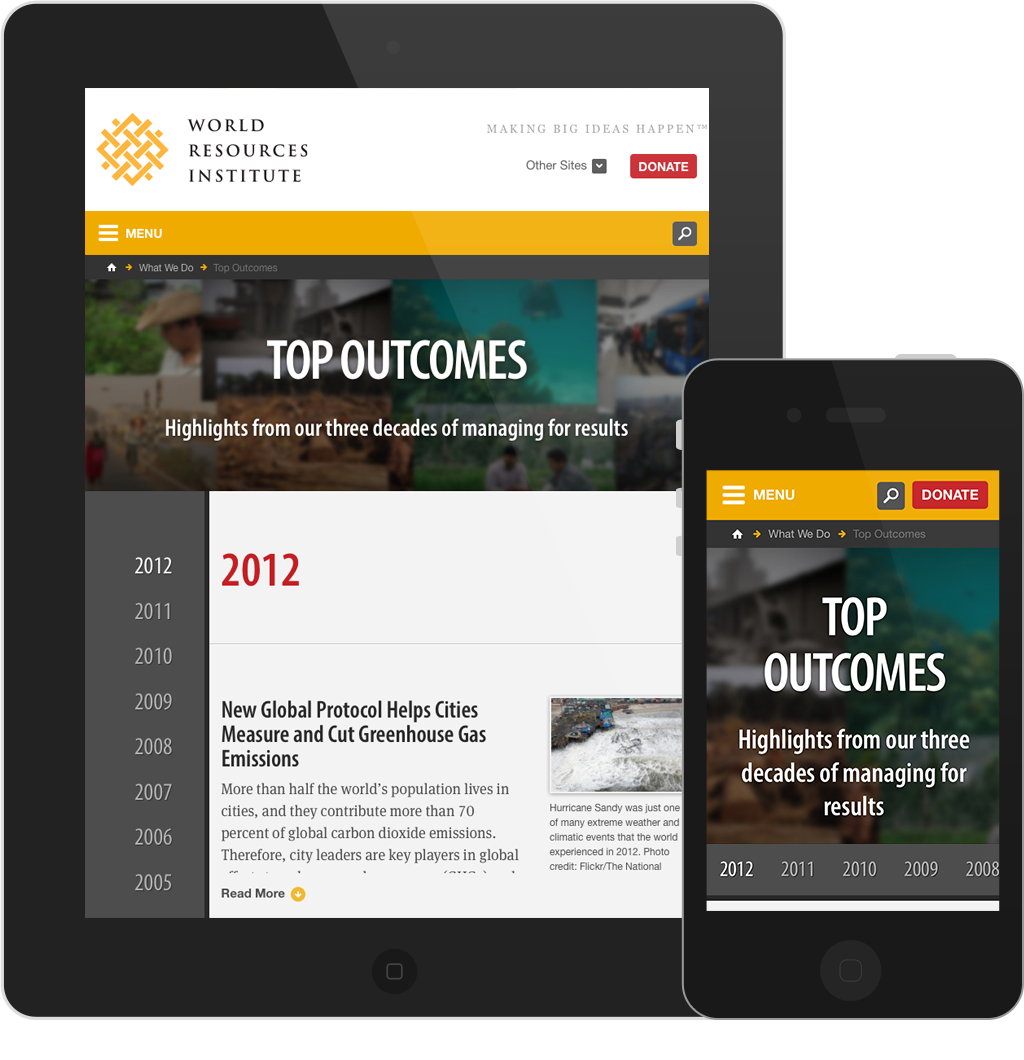

In addition to demonstrating its work globally, WRI sought a way to promote its legacy of impact over time. The development team created a simple but effective chronology of WRI’s impact since 2005 by using the Views module and grouping articles by year. Titled “Top Outcomes,” the timeline uses responsive JavaScript enhancements for an elegant experience, providing users with the ability to quickly grasp the scale of WRI’s work over time.
